Key features and uses of pin headers

A pin header, also known as a header connector or simply a header, is an electronic component used in electronics and circuitry to provide a physical interface for connecting various electronic modules, devices, or components. It consists of a plastic or metal housing with a row of male pins or terminals aligned in a specific pattern. These pins are designed to plug into corresponding female connectors or sockets, creating a reliable and repeatable electrical connection.

Key features and uses of pin headers:

1.Connector Types:Pin headers come in various configurations, including single-row and double-row headers. Single-row headers have pins arranged in a single line, while double-row headers have two rows of pins aligned side by side.

2.Pin Count:The pin count in a header can vary, ranging from just a few pins to dozens of pins. The number of pins is determined by the specific application's requirements and the number of connections needed.

3.Pitch:The pitch, also known as pin spacing, refers to the distance between adjacent pins on the header. Common pitch values are 2.54mm (0.1 inches), 2.00mm, and 1.27mm, among others. The standard 0.1-inch pitch header is widely used in many hobbyist and prototyping applications.

4.Mounting Options:Pin headers can be through-hole mounted or surface-mounted, depending on the circuit board's design and assembly process. Through-hole headers have leads that pass through holes in the PCB and are soldered on the other side. Surface-mount headers are soldered directly onto the surface of the PCB.

5.Applications:Pin headers are extensively used in various electronic applications, including circuit prototyping, PCB-to-PCB connections, connecting display modules, interfacing with microcontrollers, adding expansion modules to development boards (like Arduino), and more. They are commonly used in robotics, DIY electronics projects, embedded systems, and general electronic circuitry.

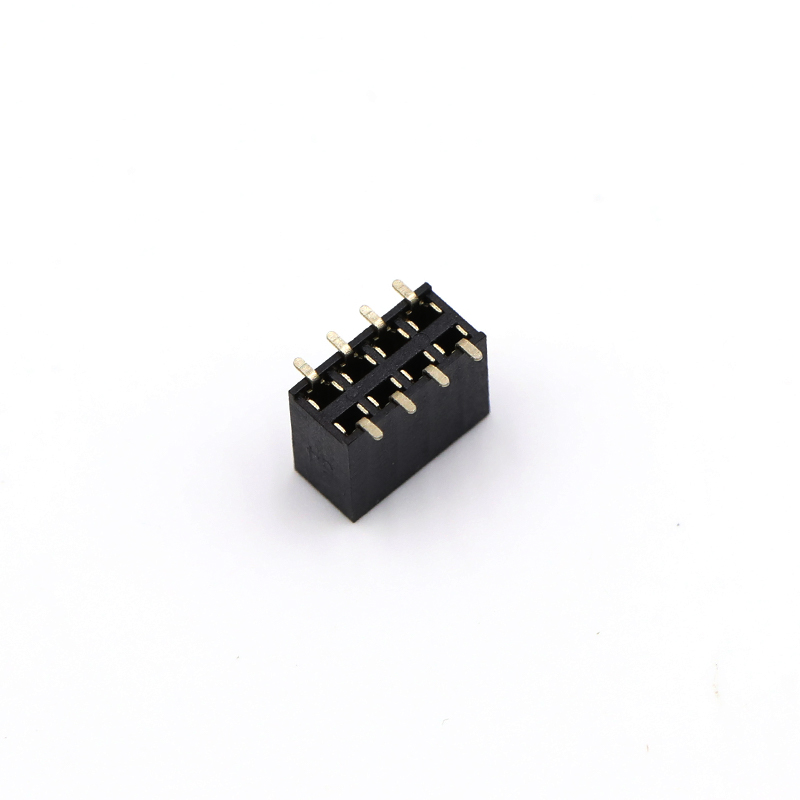

6.Gender Options:In addition to the standard male pin header, there are also female headers available, which consist of sockets designed to accept the pins of a male header. Female headers are often used on the receiving end of the connection, providing a reliable interface for components like sensors, displays, and communication modules.

Pin headers are essential components in electronics because they provide a standardized and convenient method for connecting various electronic elements. Their versatility, ease of use, and wide availability make them indispensable for both hobbyist projects and professional electronic designs.
