Steps involved in the operation of a film blowing machine

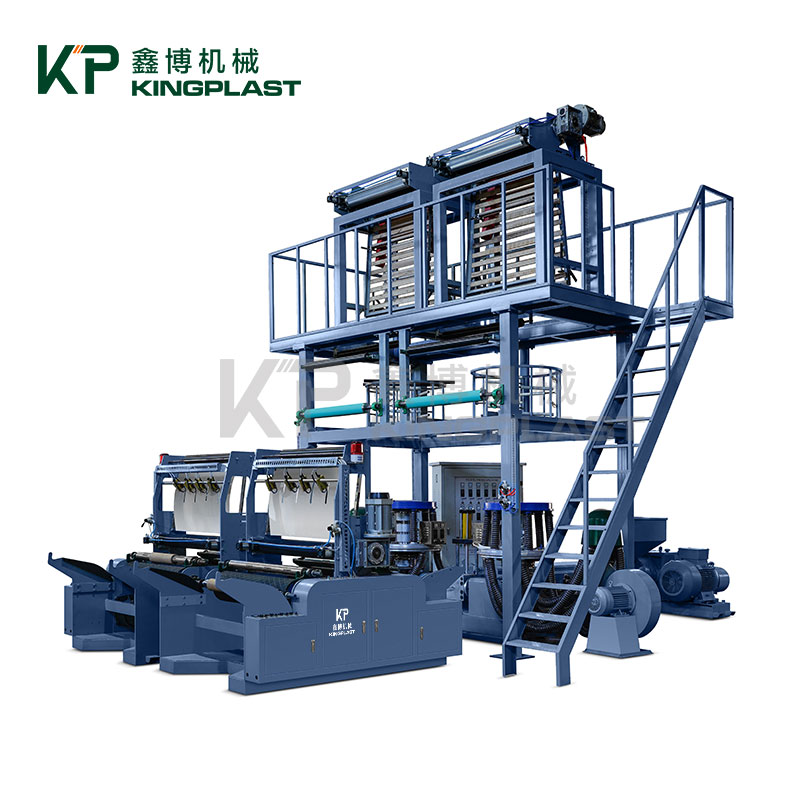

A film blowing machine, also known as a film extrusion machine or a blown film extruder, is a piece of equipment used in the plastic manufacturing industry to produce plastic films or sheets. These films can be made from various types of plastic resins, such as polyethylene (PE), polypropylene (PP), and polyethylene terephthalate (PET). The primary function of a film blowing machine is to melt plastic resin and extrude it through a circular die to create a continuous, seamless tube of plastic, which is then flattened into a film or sheet as it cools.

Here are the key components and steps involved in the operation of a film blowing machine:

1. Hopper: The process begins with plastic resin pellets being loaded into a hopper. The hopper feeds the resin into the extruder.

2. Extruder: The plastic resin is introduced into the extruder, which consists of a barrel with a screw inside. The screw rotates and pushes the resin forward, while also heating it to melt it into a viscous, molten state.

3. Die Head: The molten plastic is forced through a circular die head, which shapes the plastic into a continuous tube or bubble. The size of the die determines the width of the film.

4. Air Ring: After emerging from the die head, the plastic tube is rapidly cooled using an air ring. This cooling process helps solidify the plastic and maintain the desired film thickness.

5. Flattening Unit: To create a flat film or sheet, the bubble is flattened using a set of rollers or nip rolls. The speed of the rollers determines the final thickness of the film.

6. Winding and Cutting: The flattened film is wound onto a roll or cut into sheets, depending on the specific application.

Film blowing machines can be further categorized based on their design and capabilities:

1. Mono-Layer Extruders: These machines produce single-layer plastic films of consistent thickness.

2. Multi-Layer Extruders: Multi-layer film blowing machines can create films with multiple layers of different plastics. This is useful for adding properties such as barrier protection, strength, or aesthetics to the film.

3. Co-Extrusion: Co-extrusion machines are capable of producing films with different plastic materials in the same layer. This is often used to create films with specific properties.

Film blowing machines are widely used in the packaging industry to produce various types of plastic films, including shrink wrap, stretch film, plastic bags, and more. They are also used in the agricultural sector for producing greenhouse films, as well as in the construction industry for manufacturing plastic sheets used in roofing and insulation. The versatility of film blowing machines makes them a crucial part of the plastics manufacturing process.
