What is a tire building machine?

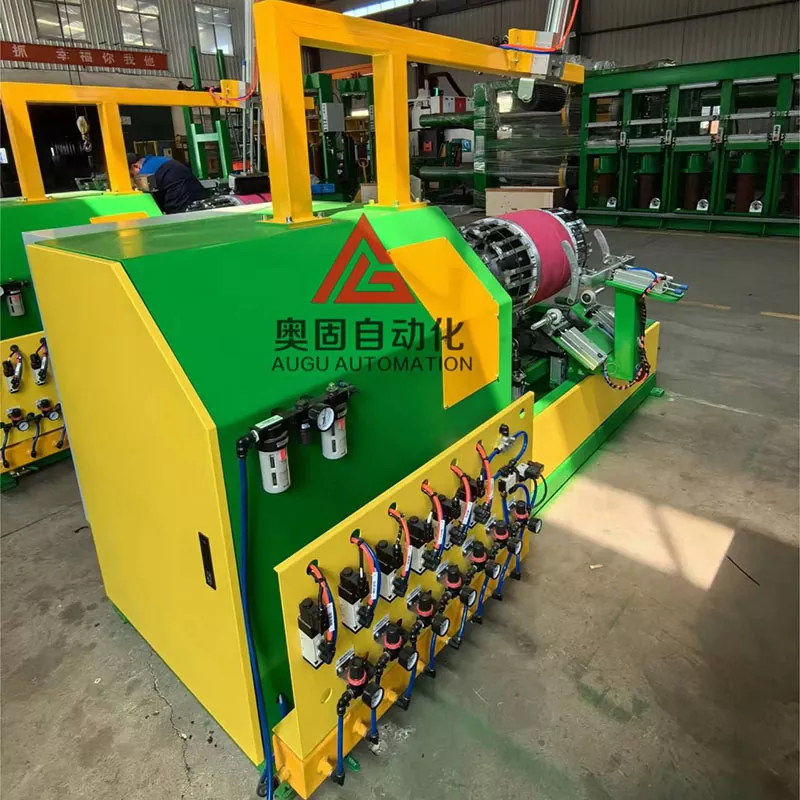

A tire building machine (TBM) is a specialized piece of industrial equipment used in the tire manufacturing process to assemble the various components of a tire into its final form before vulcanization. It plays a crucial role in tire production by combining different materials such as rubber, fabric, steel belts, and beads to form the "green tire"—an unvulcanized tire that will later be cured in a press.

Key Functions of a Tire Building Machine:

1. Component Assembly:

  - The machine assembles the tire's main components, including:

    - Inner liner: A layer of rubber that creates the airtight inner surface of the tire.

    - Body plies: Layers of fabric or steel that provide the tire with strength and flexibility.

    - Bead wire: Steel wires that ensure the tire can grip the wheel rim.

    - Sidewalls: The rubber sections that form the sides of the tire.

    - Tread: The outermost rubber layer that contacts the road.

2. Layer Application:

  - The machine applies these layers in a precise, automated sequence. The different materials are positioned on a rotating drum, and the TBM ensures they are properly aligned, tensioned, and attached.

3. Shaping and Stitching:

  - The tire building machine shapes the flat layers into the cylindrical form of a tire.

  - Stitching rollers press the layers together, removing any trapped air and ensuring that the layers adhere uniformly.

4. Insertion of Beads:

  - The beads, which are steel wires that help the tire retain its shape and stay on the wheel, are inserted and positioned precisely. The sidewalls are then folded over the beads to create a strong bond.

5. Tread Application:

  - The machine places the tread, which is the outer layer of rubber that contacts the road, onto the tire carcass. It ensures a snug fit and proper alignment of the tread design.

6. Building Different Tire Types:

  - Tire building machines are used for various types of tires, including:

    - Passenger car tires

    - Truck and bus tires

    - Agricultural and off-road tires

Types of Tire Building Machines:

1. Single-stage TBM:

  - In a single-stage process, the entire tire carcass is built on one machine. It is typically used for simpler tires like passenger car tires.

2. Two-stage TBM:

  - In a two-stage process, the carcass and the tread are built on separate machines and then combined in a later stage. This is more common in truck, bus, or specialty tires.

Modern Features of Tire Building Machines:

- Automation: Many modern TBMs are fully automated, reducing manual labor and increasing precision.

- Customization: Machines can be programmed to build tires of different sizes and specifications, depending on the type of vehicle or performance requirements.

- Precision Control: Advanced sensors and control systems ensure that each layer is applied with precision, optimizing the tire’s strength, durability, and performance.

Importance in Tire Manufacturing:

The tire building machine is critical for ensuring that tires are built to exact specifications. A well-built tire ensures durability, safety, and performance, as the TBM ensures uniformity and quality during the assembly process. Without this machine, tire manufacturing would be significantly slower and less precise.
